Gridstore Gridstore Visio collection: Gridstore's official Visio collection for their software-defined storage products.
Collection created by VSD Grafx Inc, Questions can be sent to VisioCafe
  Collection News
24-Feb-2015

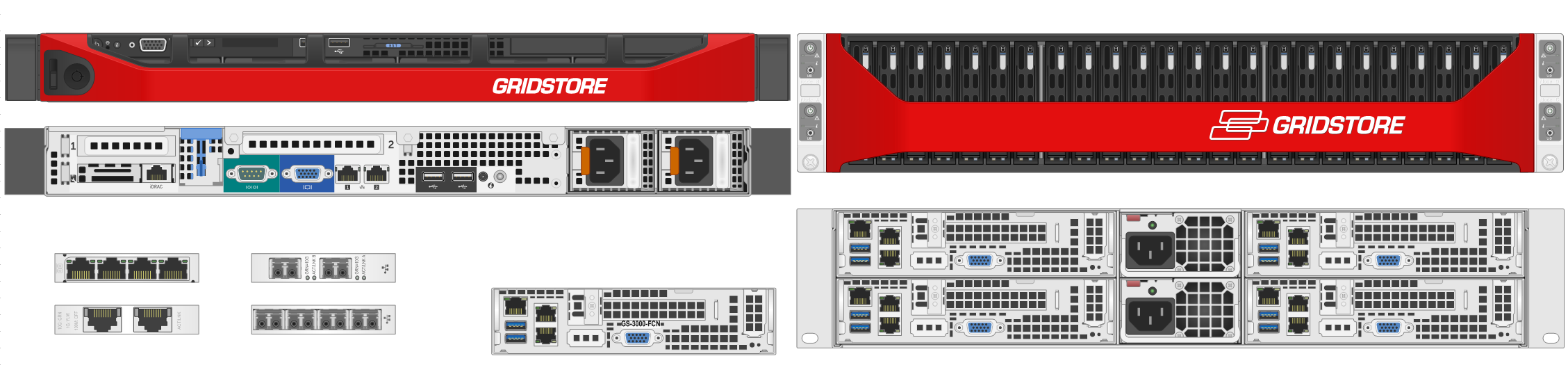

- Gridstore.vss - Added front and rear views of the Gridstore GS-3000
  Current Stencils (Created by VSD Grafx Inc)   click picture for preview
.zip Gridstore Front and rear views of Gridstore
1,295KB

24-Feb-2015
Click for large view

Collection is compatible with Visio versions 2003 to 2016.  Stencil folder is My Documents\My Shapes\   (Path names vary for non-US English versions)
These stencils work best for any scale templates from 1:2 to 1:30 but NOT Visio's "Blank Page" which is 1 to 1 (no-scale)
Visio's "Blank page" causes much frustration.  Use our templates instead, they have all the right settings to make Visio much easier.
